    Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing

    Ask Lasest Price
    Brand Name : ZH
    Model Number : ZH1000
    Certification : CE / SGS
    Price : $12500-18500/set
    Payment Terms : T / T or western Union, L/C
    Supply Ability : 120 sets per month
    Delivery Time : 35 working days after received your payment
    • Product Details
    • Company Profile

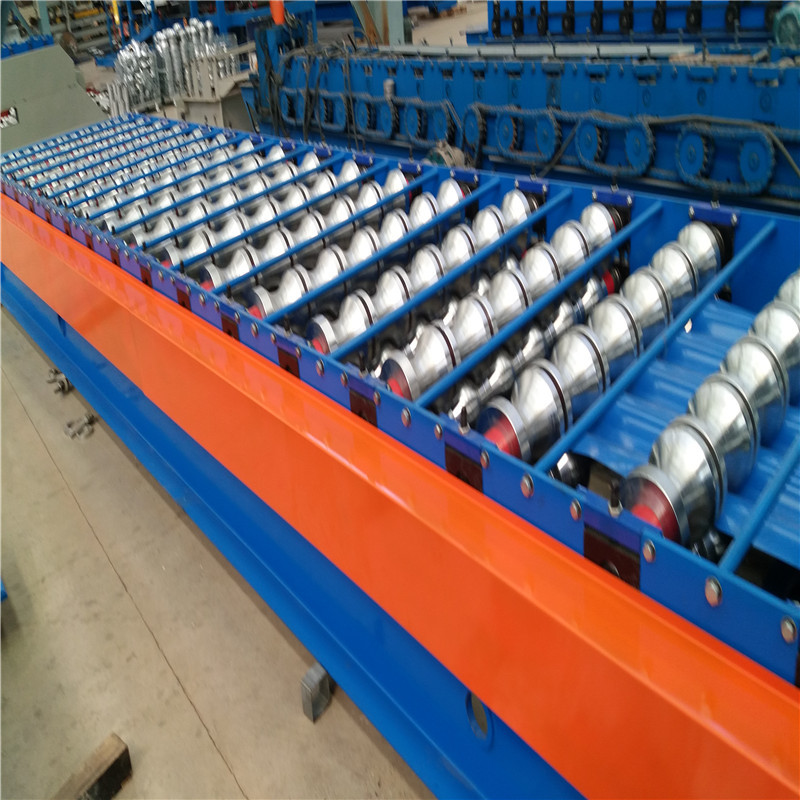

    Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing


    Full Automatic Double Glazed Tile Roll Forming Machine With Wave Pressing

    Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave PressingFull Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing


    Automatic Double Glazed Tile Roll Forming Machine

    A good design makes machine performs outstanding.We have 15 year experience R&D devoted to desing your machine.

    Basic Information

    Certification: SGS, CE, ISO
    Condition: New
    Customized: Customized
    Usage: Roof, Wall
    Transmission Method: Electric
    Guarantee Time: First Year Free, Lifetime Services
    Machine Type: R Panel Roll Forming Machine
    Control System: Mitsubishi PLC & Converter
    Main Motor: 7.5kw
    Power: 380V, 50Hz, 3pH( or Made as Required)
    Operation Language: English or as Per Client`S Required
    Rollers Material: No.45 Forged Steel with Hard Chrome
    Cutter Material: Cr12 Mould Steel with Quench Treatment
    Cutting Style: Automatic Hydraulic Cut to Length
    Shafts for Rollers: Grand Twice, ID72mm Solid Steel
    Export Markets: Global


    Parameters of Automatic Double Glazed Tile Roll Forming Machine

    ItemSpecification

    Raw Material
    Pre-painted steel coil & galvanized coils
    0.3-0.8
    235-550
    Roller material45# steel , coated with Chrome
    Shaft for rollersSolid shaft with 72mm,processed with cylindrical grinder
    Forming speed(m/min)About 20
    Output speed(m/min)About 10
    Speed adjusting modeMitsubishi frequency transformer
    Roller driveDecelerating motor + Chain drive
    Cutting modeautomatic hydraulic cut to length
    Cutter materialCr12 mould steel
    Length measurementNemicon Encoder
    Control modeMitsubishi PLC
    Operating modeButton + Mitsubishi Touch screen
    Main motor power(kw)7.5KW
    Total power(kw)9.9 KW

    Components of machine
    Decoiler (manual decoiler and hydraulic decoiler for option)1set
    Feeding & guiding device1set
    Main roll forming machine1set
    Hydraulic cutting system1set
    Controlling system1set
    Run out table (auto. Stacker for option)1set

    We customize your machines! To customize machine, we would love to know:


    1. Profile drawing
    2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
    3. Voltage: designed per your requirement
    4. Configuration requirement: Hydraulic or manual decoiler / stacker?


    Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave PressingFull Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
