Brand Name : | ZHONGHENG |
Model Number : | ZH |
Certification : | CE/SGS/ISO9001 |
Price : | 32,500$-35000$/set |
Supply Ability : | 10 sets/months |
Delivery Time : | 30 working days |
Aluminum Coils Stone Coated Roof Tile Machine For Classic Tiles 315
Ton capacity
Description:
This kind of machine ,it is used for pressing,Cylinda control with
oil,with 315ton p.resure.Can change mold to get different models of
roofing.It is usually the first step before coating line to make
the stone coating roofing sheet.
Specification
Suitable material | For Aluminum coils |
Thickness of the material | 0.4mm |
Material of the sheet | 1385×457mm |
Hydraulic Rated working Pressure | 20MPA |
Pressure | 315Ton |
Finished products | Classic Tile/Circular |
Diameter of pillar | 160mm |
Max distance between slider and work table | 800mm |
Length of Slider | 650mm |
Effective size | 1700*1100 |
Slider speed(Downwards) | 100mm/s |
Working speed | 17mm/s |
Slidder speed(back) | 88mm/s |
Motor power | 22kw |
Price | 32,500USD |
Extra Mold(Circular /Bevel Edged/Flat Shingle Tile) | 10,000USD |
Advantage of stone coated roof tile:
· Simplicity and lightness,no costly maintenance
· Variety of colors
· Outstand durability,fire proof,water proof,low temperature resistance,corrosion resistant
· High economic efficiency
· Easy installation.
· Drying technology make color never fade.

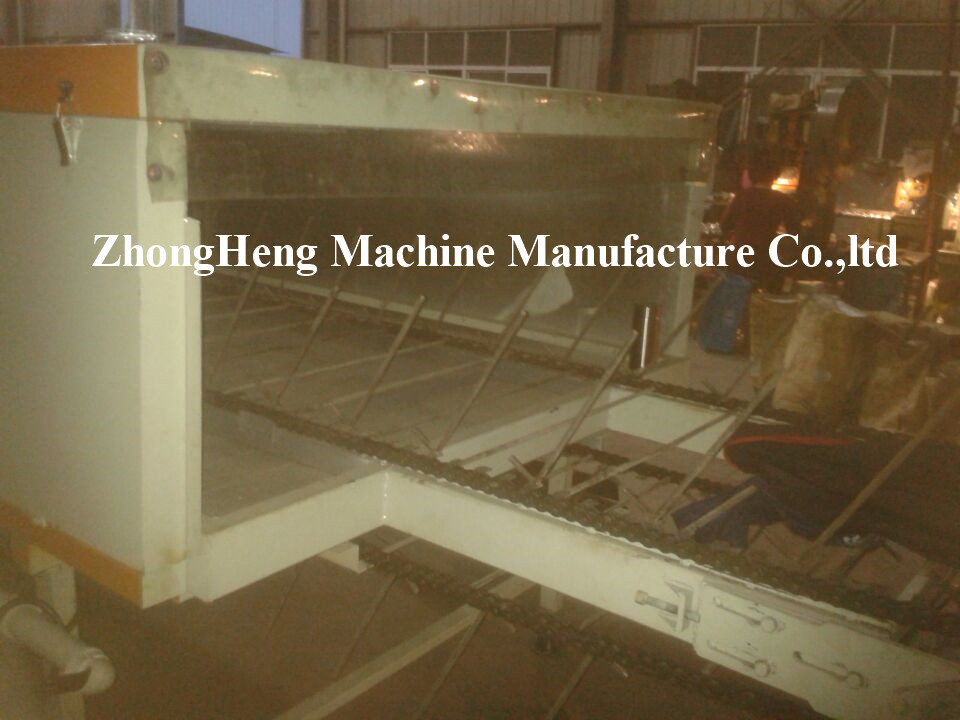

Machine picture
![]() |
