    High Tensile Thin Barrel Aluminium Corrugated Roll Forming Machine For Roofing Sheet

    Ask Lasest Price
    Brand Name : ZHONGHENG
    Model Number : ZH762
    Certification : CE/SGS/ISO9001
    Price : $ 32000-42000/set
    Supply Ability : 20 sets/months
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

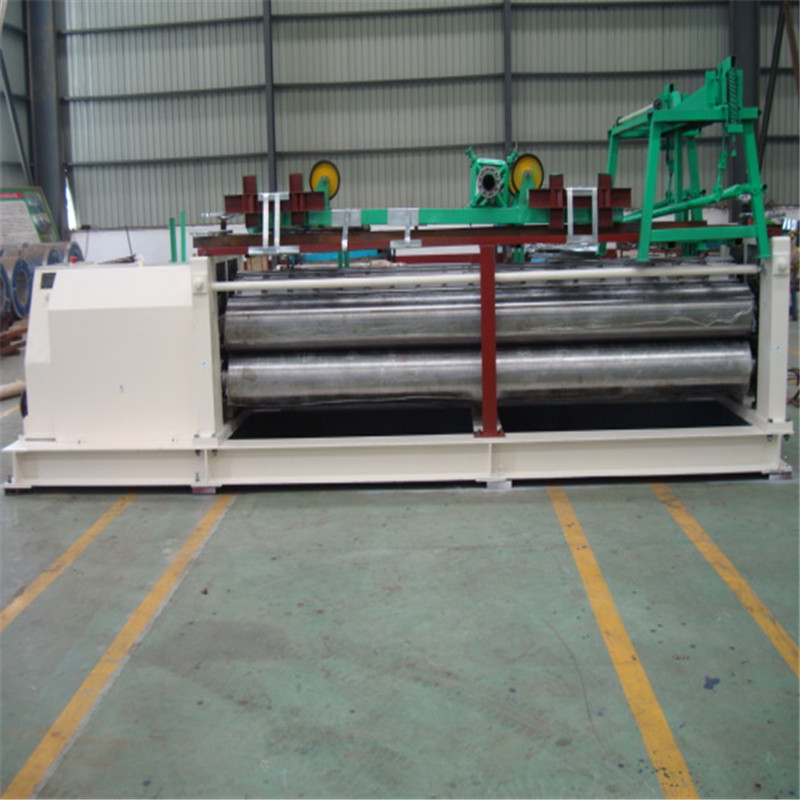

    High Tensile Thin Barrel Aluminium Corrugated Roll Forming Machine For Roofing Sheet

    High tensile thin barrel Aluminium Corrugated Roofing Sheet Roll Forming Machine


    High Tensile Thin Barrel Aluminium Corrugated Roll Forming Machine For Roofing Sheet

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.

    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    TECHNICAL PARAMETERS FOR CORRUGATED PANEL ROLL FORMING MACHINE
    Serial Number
    Item
    Parameters
    Remark
    Applicable material
    Type
    GI/PPGI
    Thickness
    0.25-0.6MM
    Yield strength(Mpa)
    G245-G550
    Main performance parameters
    Forming speed(M/MIN)
    12-20M/MIN
    Machine size(L×W×H)
    9*1.5*2
    Refer to the machine
    Power supply(KW)
    7.5+3.0
    Motor and Hydraulic Motor
    MACHINE COMPONENTS FOR CORRUGATED PANEL ROLL FORMING MACHINE
    Name
    Model/name
    Quantity
    Technical description
    1.Decoiling system
    Hydraulic decoiler
    1 set
    Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
    2.Forming machine
    Material Guiding System
    1 set
    For feeding in a right position no Deviation.
    Precutting Device
    1 set
    Prevent the profile being unbeautiful because of the rough material.
    Main Roll Forming Machine
    1 set
    About 22 steps, motor driving and chain transmission. Wall plate structure.
    3.Cutting system
    Hydraulic Cutting Device
    Precutting and postcutting both.
    4.Hydraulic system
    Hydraulic Station
    1 set
    Providing the power of cutting.
    5.Control system
    PLC Control System
    1 set
    PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
    6.Racking system
    Exit rack
    3 PC
    no power.

    Applications:

    The tiles produced by this Popular Type Corrugated Colored Steel Cold Forming Machine are widely used in

    all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency

    and reliable working. It consists of feeding platform, main molding core, shearing mechanism, hydraulic

    station, computer control cabinet, high precision counter and so on.

    Competitive Advantage:

    1. save space

    2. easy installation

    3. best after-sale service

    4. excellent quality

    5. Operate easily
