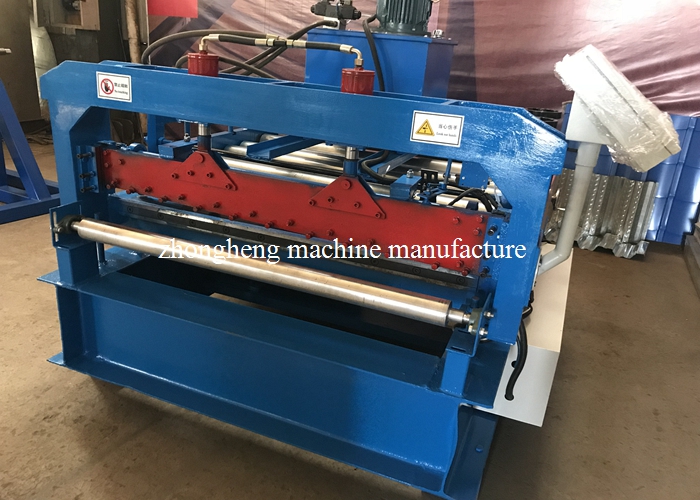

Cut to length and leveling machine with PLC control box for 2mm thickness coil

Specification

Main technical parameters of Automatic steel sheet leveling machine, level machine :

a. applied to: cold rolled steels;

b. material quality: first class steel coils of the international standard;

c. width:1250mm(Max);

d. thickness: 0.15-1mm;

e. diameter of leveling rollers: φ50

f. distance of leveling rollers: 52mm,

g. material of leveling roller:GCr15,hardness:HRC58-60

Brife introducton of Cut to length and leveling machine with PLC control box for 2mm thickness coil

1.It is equipped with the press and pinch device at the entry which is driven by hydraulic.

2.It is composed of 17 leveling rollers, 2 groups of supporting rollers ,driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main force rollers. the total quantity of the rollers is 19, the diameter is φ50 and the distance between the rollers is 52mm, with supporting rollers. All the rollers are plating leather to protect the stainless steel plate surface is not wear.

3.The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.

4.The working rollers can be adjusted the gap electrically which is controlled by 2 hand wheel to ensure the leveling quality.

5.Driving model: all the independent rollers and gear box are driven by 22Kw frequency control motor.
