Automatic Cutting C Z Purlin Roll Forming Machine

Working processing of Automatic Cutting C Z Purlin Roll Forming Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Quick Details

1. Rolling Speed : 10-12m/min(cutting time is not include)

2. Steel sheet Thickness: 3mm

3. Control System: PLC:

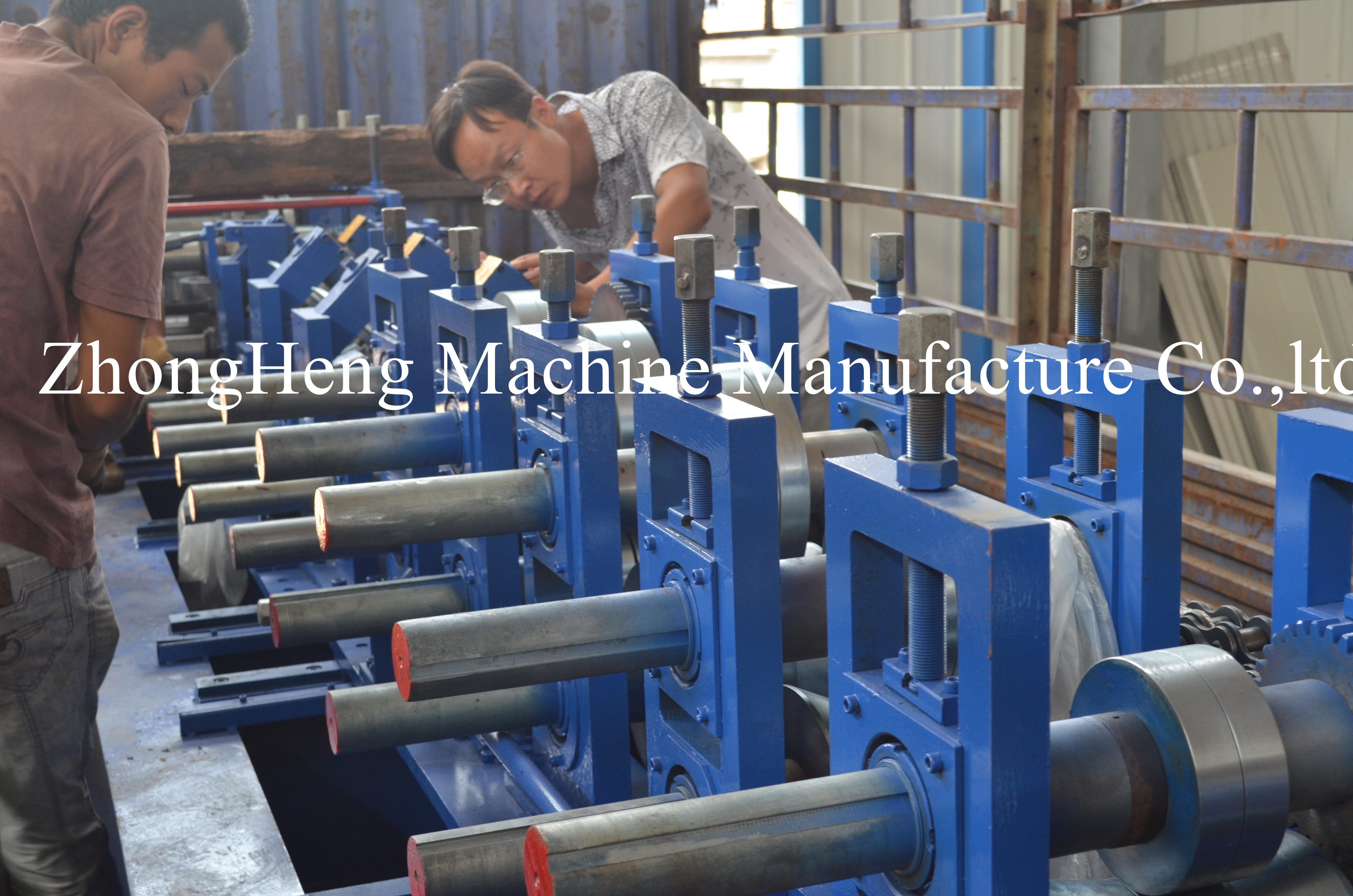

4. Roller Stations: 18 stations

5. Roller Material : 45# forge steel, coated with chrome

6. Shaft Material and DIA: ￠85mm,material is 45# forge steel

7. Maim Motor Power: 11kw

8.Hydraulic Pressure: 12Mpa

9. Material Of The Stations: Wall plate

10. Tolerance: +1.5mm

11.Power supplier:380V, 60HZ,3 phase

12.Way Of Drive:1.2 inch single chain

13. Color Of The Machine :blue

14. The size of the forming machine:8000*1500*1000mm

15. Machine weight: about 6 tons

FAQ

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

Our Advantage

Free quotation please contact Rebecca

WhatsApp/Wechat: +86 15720370230

CANGZHOU ZhongHeng Machine Manufacture Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. Besides this we Cooperate with professional factories for nail making machine and livestock equipment.

We would like to invite you to come and join our to build our mutual benefit.
