Metal Sheet Steel Coil Slitting Line Machine Hydraulic Motor 60 M /Min Cutting Speed

More information feel free to contact Rebecca

WhatsApp/Wechat : +86 1572037023

1. The Product Description

(1). Brief Introduction

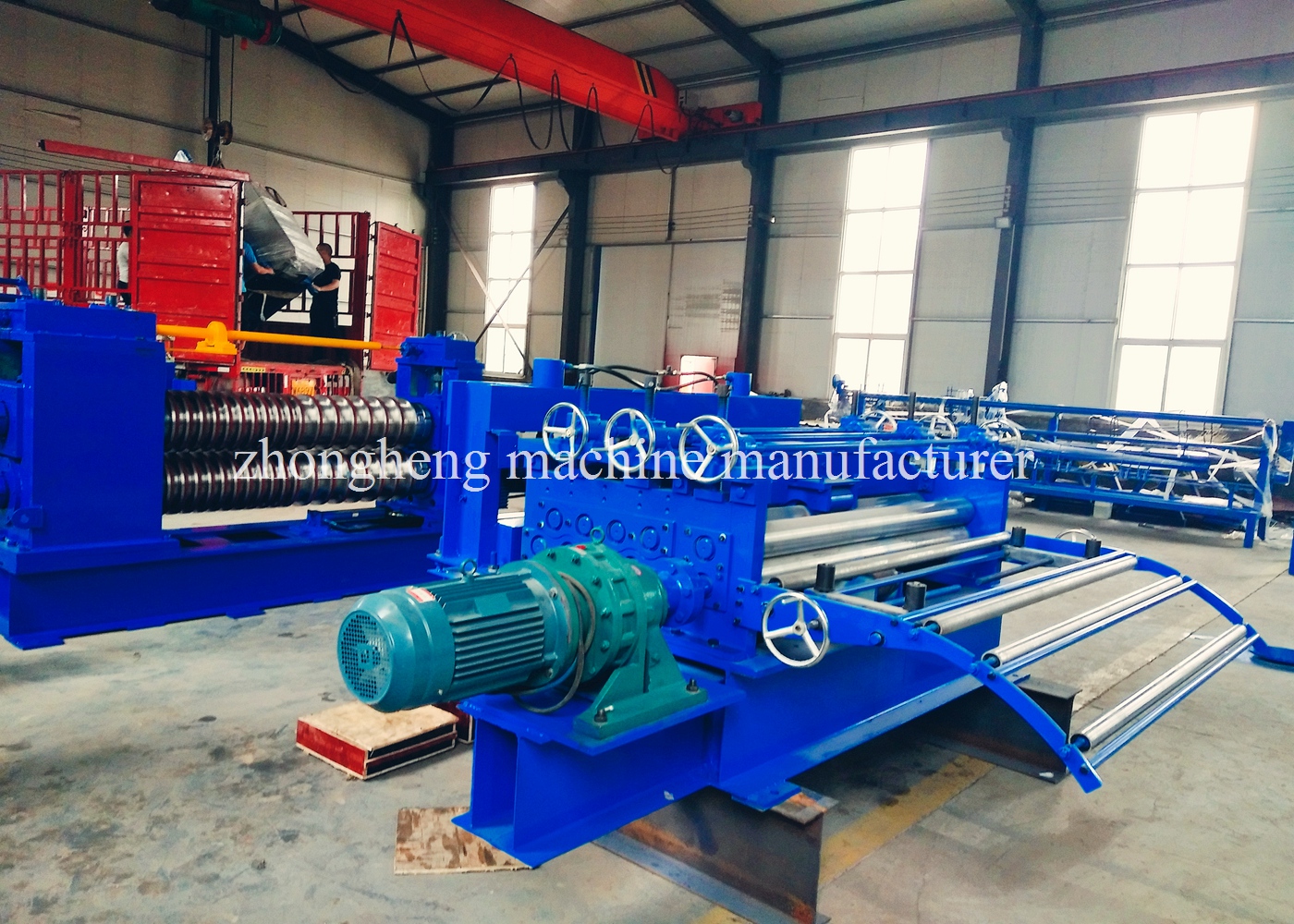

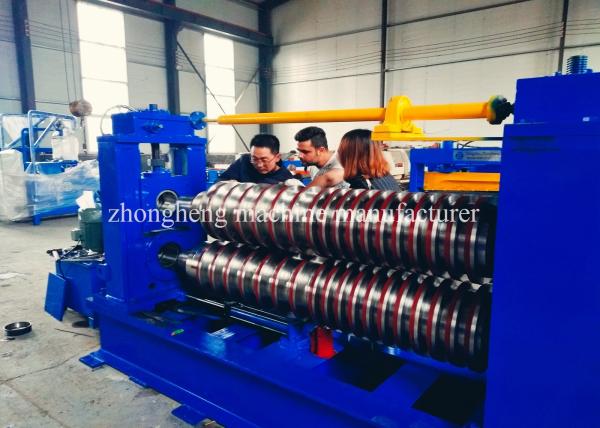

This slitting machine is used to slit the steel coil which is 3mm maximum, it is used to cut wide width material to many narrow width products, it can also called longitudinal or vertical cutting.

(2). Working Flow of Roll Forming Machine

Material loading car—double loading uncoiler—leading head, pressuring head,shoveling head—double roller pinch-shearing machine—Deviation correcting device—slitting—Waste steel coil coiling—Loop—Pre-segregation, tensioner—coiling—unloading cart-—hydraulic control—electrical control

(3).Technical Detail

A. General

Technical datas

1). Shaft of pre-depiler:Φ95×2100mm

2). Dimension and material of pre-depiler:Φ200×3mm,65Mn quenched

3). Pre-depiler installing:Push one side of torii stand

4). Damping style:Torii stand beam compress,add wood and wool felt between upper beam and bottom beam,add five rollers correcting roller.

5). Pressing power:Hydraulic cylinder Φ80×150mm two pcs,adjustable.

6). Material of five rollers correcting roller:40Cr forge steel,quenched hardness HRC52-55°

7). Dimension of Straighten roller:Φ200×2150mm

8). Recoiler,press and Subsection:

9). Structure and style:Gearbox drive,Hydraulic cylinder drive to angle sliding expansion and pinch

10). Dimension of recoiler shaft:Φ280×2100mm

11). Recoiler lump size:Φ610×2100mm

12). Expansion power:Cylinder size Φ200×100mm

13). Support bracket of recoiler shaft:Steel structure；Hydraulic cylinder Φ80×350mm

14). Press and Subsection shaft size:Φ95×2100mm

15). Subsection size and material:Φ200×3mm,65Mn quenched

16). Depress power of subsection:Hydraulic cylinder Φ80×350mm,adjustable

17). Cylinder size of pusher arm:Φ80×2100mm

18). Recoiling power:160KW DC moto

19). Motor control:EUROTHERM 590 controller

20). Recoiling speed:0～70m/min adjustable

21). Capacity of recoiling:20000Kg

22). Unloading car:

23). Structure and style:welded steel structure with four wheels

24). Driving power:Hydraulic motor BM3-395.

25). Lifting power:Hydraulic cylinder Φ220×700mm

26). Capacity:20000Kg

27). Hydraulic station,control valve,One set Oil pipeline,pressure 16Mpa,Power:11KW-4

28). Oil tank capacity:450L
