Galvanized steel coil uncoiling and slitting line with rewinding function

More information feel free to contact Rebecca

WhatsApp/Wechat : +86 15720370230

Our Galvanized steel coil uncoiling and slitting line with rewinding function can work 0.3mm up to 3mm thickness . The strips can be used in small forming machines such as gutter and rige cap system .

Also used in light gauge steel villa and welding pipe industires .

Galvanized steel coil uncoiling and slitting line with rewinding function Advantage

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.0.3-3mm 3mm galvanized steel coil slitting and recoiling line

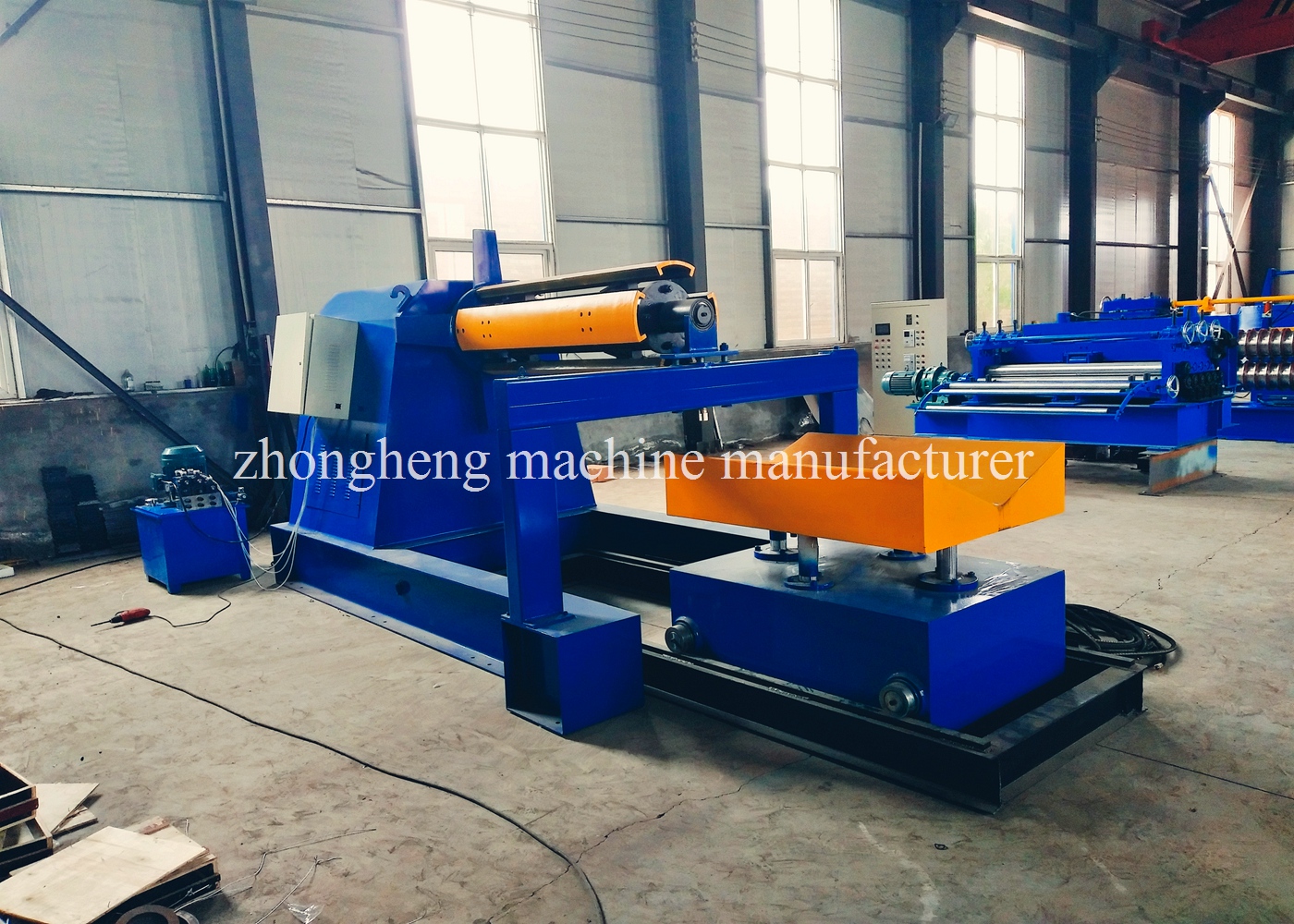

15T Hydraulic Uncoiler Function: Supporting coil and fix it , start motor to lead plate into leveling machine Motor AC 7.5 KW Mandrel diameter:φ508mm Manipulator: Hydraulic pressure drive. Braking: Pneumatic brake Capacity:15T

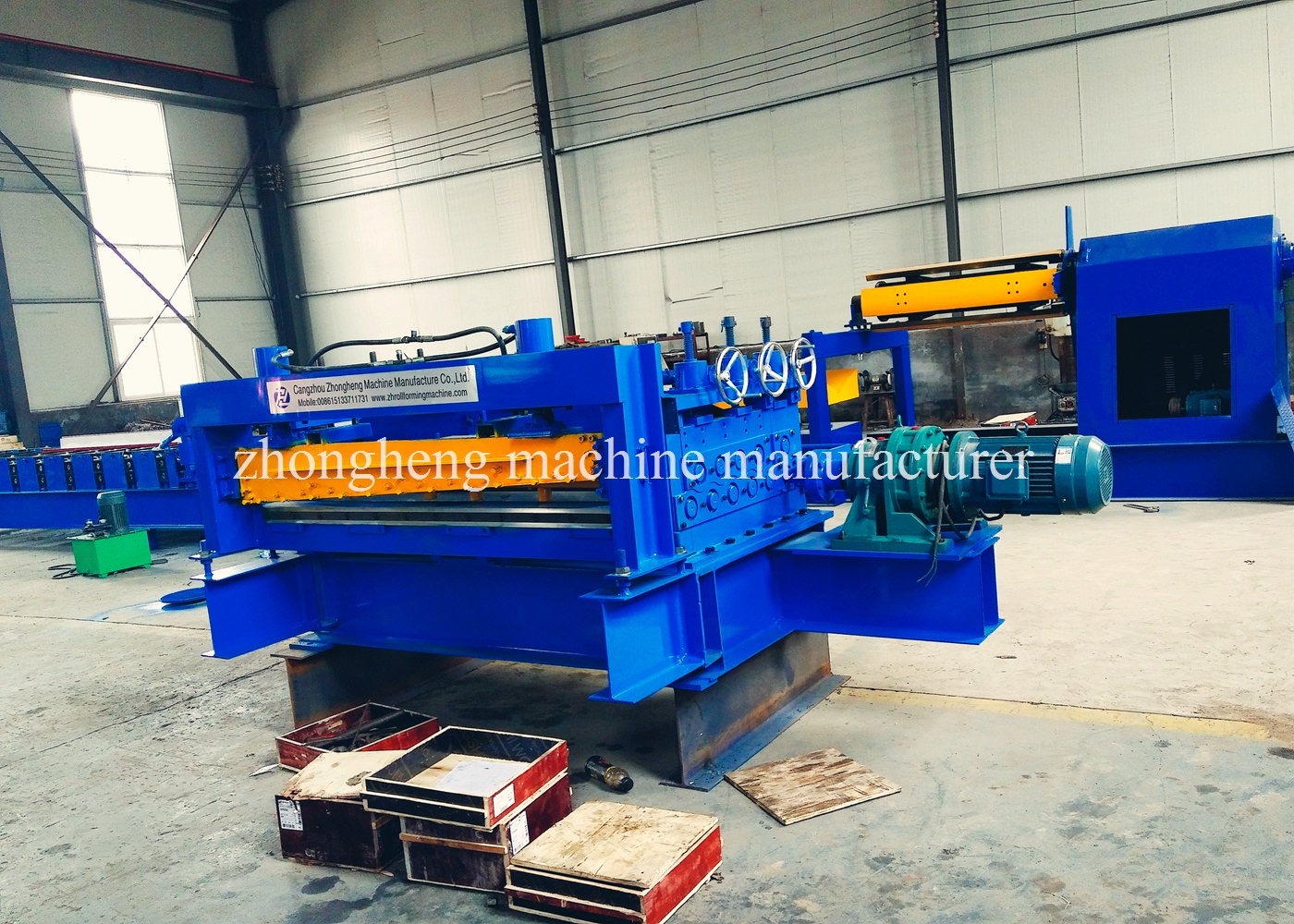

	Levelling and cutting device Leveling machine has 5 roller up and 6 rollers down Motor AC 7.5KW Crop shear: Drive by oil hydraulic cylinder, cut off the crude steel plat head for following processing.

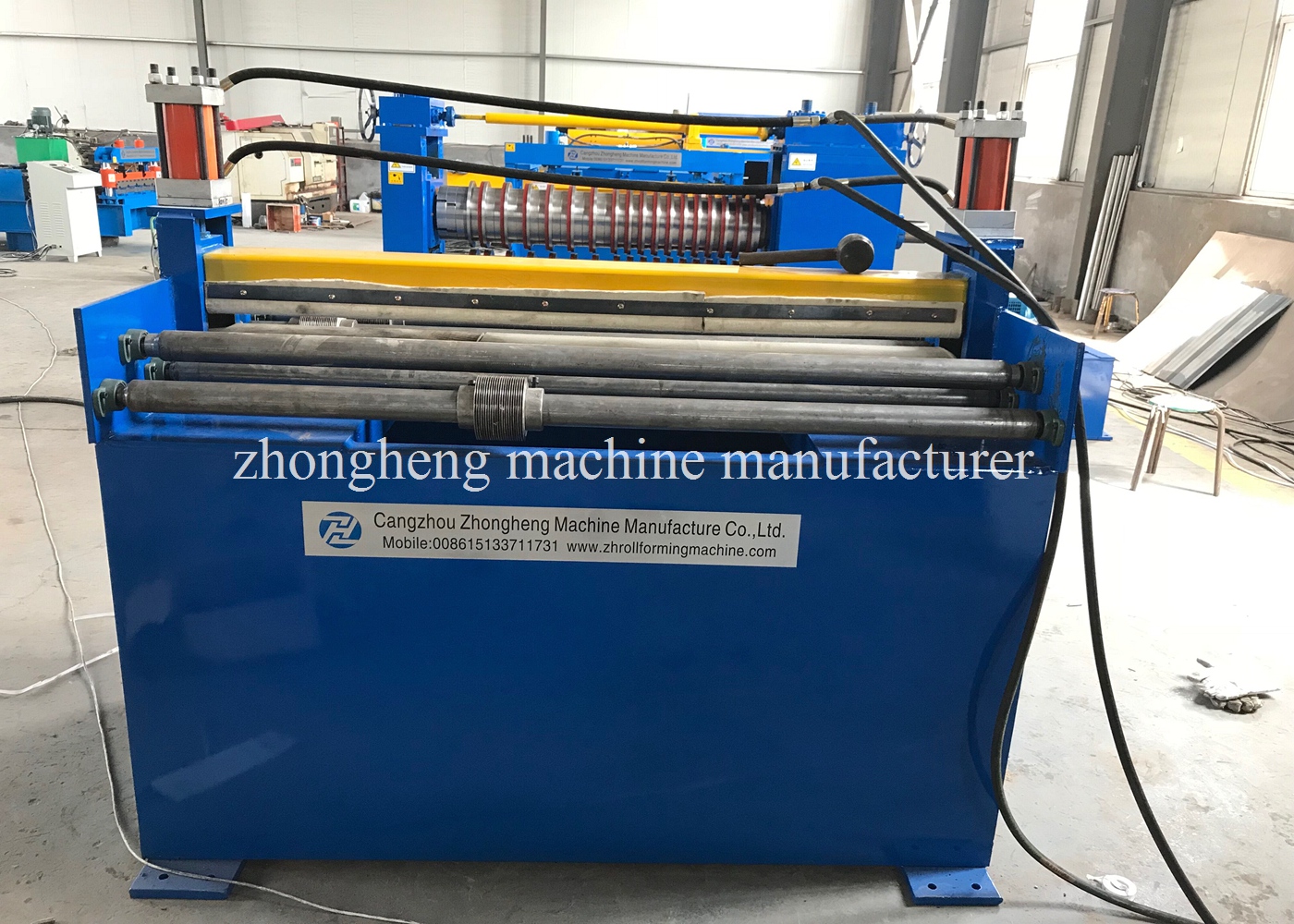

Main Slitting Machine Adopts Japanese Circle cutter, can shear different Size strips . Main axis material 40CR, diameter Φ240mm Blade material: Cr12Mov Motor :18-22 KW Strips size adjustable
	separated steel strip, which form a certain tension before send to the recoiler, to complete winding operation
collect the steel strip after slitting closely Motor: 22KW

Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.	After-Sales Service * Training how to instal the machine, training how to operate the machine. * Engineers available to service machinery overseas.

Packing & Delivery

Size: 15000 (L) * 1850 (W) * 1510 (H) Weight: 20T 1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' container to shipping.

Free to Contact us

CANGZHOU ZhongHeng Machine Manufacture Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. Besides this we Cooperate with professional factories for nail making machine and livestock equipment.

We would like to invite you to come and join our to build our mutual benefit.
